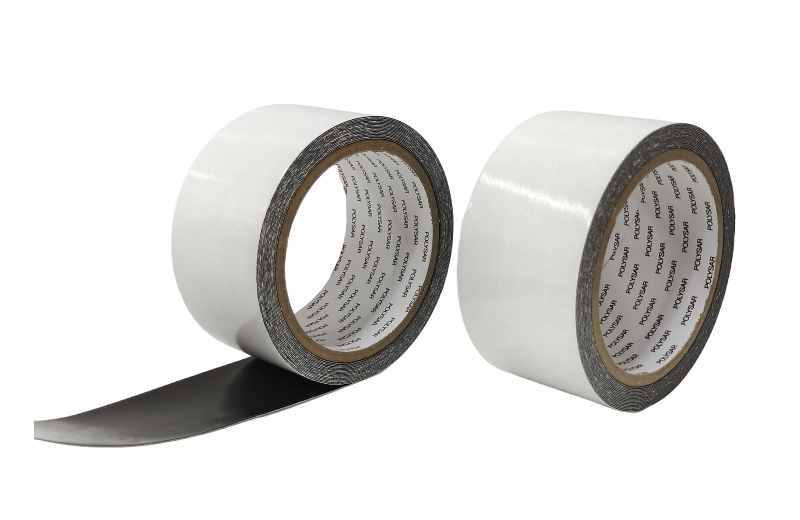

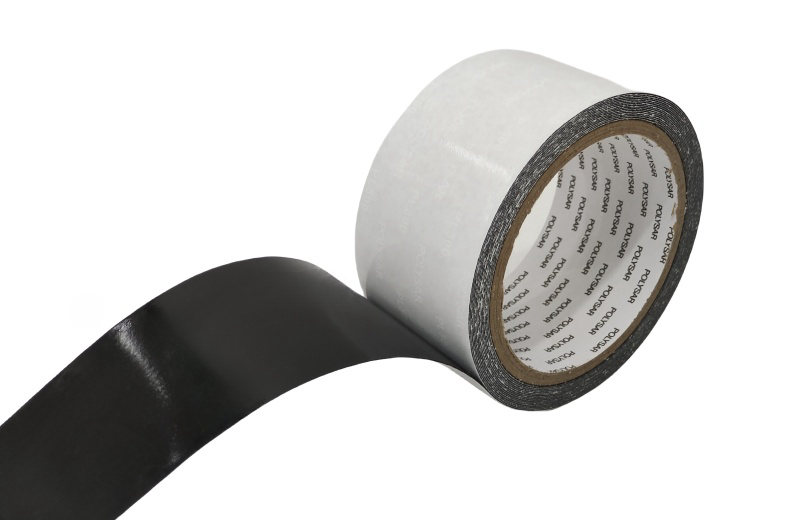

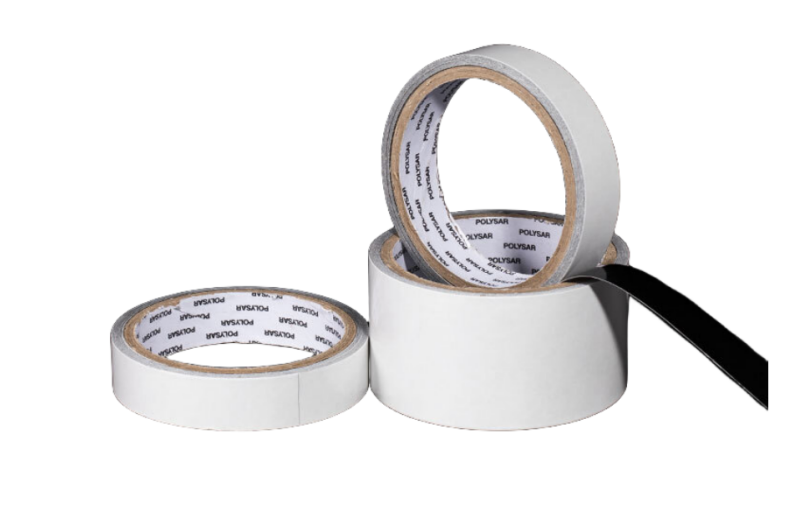

Ultra Thin Waterproof Foam Tape

The Hongqing acrylic foam adhesive tape series adopts a unique solvent-free manufacturing technology to produce acrylic foam double-sided adhesive tape. The foam layer and surface adhesive layer are all composed of polyacrylic ester viscoelastic materials. There are four colors for tape to choose from: black, gray, white, and transparent.

This special structure endows the tape with a special overall viscoelasticity. The tape can effectively dissipate the stress inside the adhesive through the mechanical relaxation of the tape, without causing stress concentration, thus effectively bonding and protecting the material. Moreover, the foam layer is a closed cell structure with excellent air and water barrier properties.

Foam double-sided tape is made by applying hot melt adhesive on both sides of PE foam substrate, and then covering it with peelable release material. It has good aging resistance, resistance to repeated changes in low and high temperatures, good adhesion, and high tensile strength. It is used for bonding various surfaces such as curved or arched metals or fabrics, especially for electronic products, metal sheets, and other occasions that require high adhesive strength. It is also widely used to composite with various products to enhance tensile strength. It is widely used for bonding and fixing two objects, and is very convenient to use.
The characteristics of PE foam tape:
Water resistance: Closed cell structure, non absorbent, moisture-proof, with good water resistance.
Corrosion resistance: resistant to corrosion from chemicals such as seawater, oil, acid, and alkali, antibacterial, non-toxic, odorless, and pollution-free.
Processability: No joints, and easy to perform processing such as hot pressing, cutting, gluing, and bonding.
Anti vibration: High rebound and tension resistance, strong toughness, and good shock/cushioning performance.
Thermal insulation: Excellent insulation, cold resistance, and low temperature performance, resistant to severe cold and exposure to sunlight.

Sound insulation: Closed bubble holes, good sound insulation effect.

Using extremely thin special foam as the substrate, the thinnest layer can reach 0 1MM, excellent waterproof performance meets international IPX7-8 standards, with ultra-high impact absorption rate, shock resistance, and sound insulation functions.

PE foam tape is made of PE foam as the base material, coated on both sides with high-performance oily acrylic adhesive, elastic foam base material, strong adhesion, good weather resistance, waterproof, solvent resistant, anti-aging, providing excellent adhesion effect on uneven surfaces.

PE foam double-sided tape refers to a double-sided tape made by applying acrylic adhesive on both sides of a PE foam substrate. The colors mainly include white, black, and gray, with commonly used thicknesses of 0.3mm, 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, and 3.0mm. The foam foaming ratio is 10 times, 15 times, 20 times, and 30 times, and the release paper (white, yellow) and release film (red, green, blue, orange) are the main release materials.

Product Details

PE foam is a double-sided adhesive tape made of high-density ultra-thin waterproof foam or PE foam as the base material, with excellent adhesion and holding force, as well as good shock resistance and processing performance.

Brand: POLYSAR/OEM/ODM

Substrate: Ultra thin waterproof foam adhesive

Thickness: 0.1~0.4 (mm)
Width: 5-1240 (mm)
Colors: black, white, gray
Waterproof performance: IPX7~8 (water depth of 1.5M)
Initial adhesion: 12-15
Retention force: ≥ 168
Applicable temperature: -20 ℃~120 ℃

Release materials: printed release paper, red, transparent film, etc

Note: The above data is only a typical approximate range. The detailed parameters of each product are subject to the corresponding technical information of the product, and personalized customization services can also be provided.
